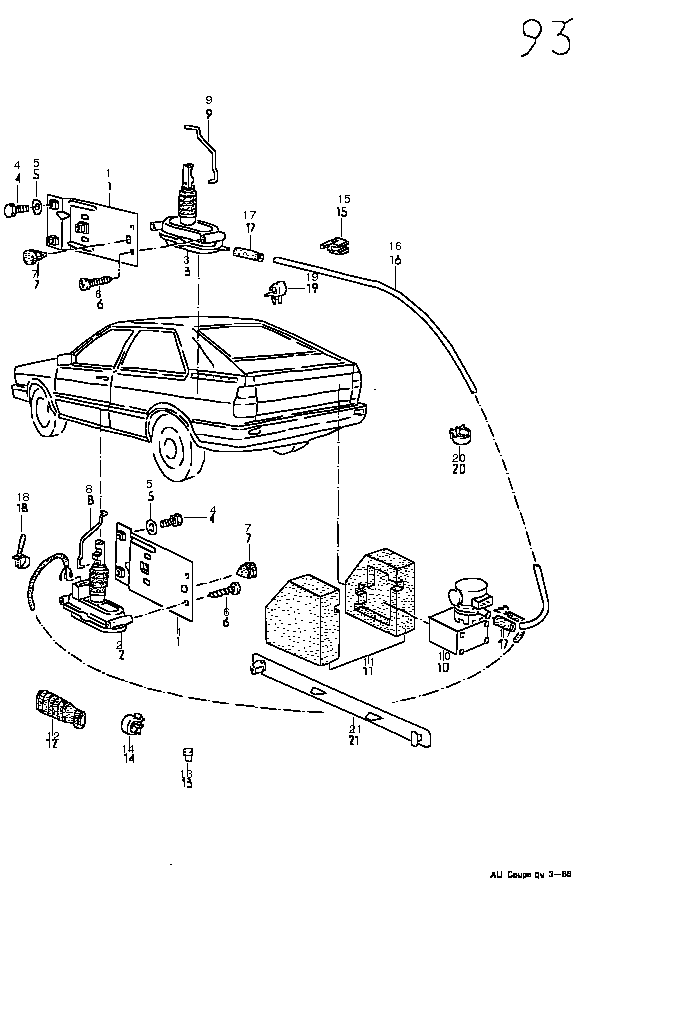

| 1 |
813862119 |
retainer |
| 2 |
813862153A |
control valve / left |
| 3 |
443862153B |
operating valve |
| 4 |
N 01021226 |
hexagonal head bolt / M6X12 |
| 5 |
111837941 |
concave spring washer / 6,4X12,5 |
| 6 |
433862195 |
screw / 4,2X16 |
| 7 |
823253149 |
stop buffer / 12X7 |
| 8 |
813862163C |
connecting rod / left front |
| 9 |
813862164C |
connecting rod / right front |
| (10) |
443862257B |
pump with control unitalso use: / >>85-F-140000 / 443 862 227 A |
| (11) |
443862227A |
sound absorber for pumpF 85-F-140 001>>* |
| 12 |
4A0959845C |
|
| 13 |
431805121A |
t-bolt |
| 14 |
N 90666101 |
cable tie / 4,5X200 |
| 15 |
445955846 |
clip |
| - |
7M0955961B |
tube / 5X1X6000MM shorten to: / 4300MM / lhd shorten to: / 5250MM / rhd |
| - |
533862225 |
hose / 3,5X3X540 shorten to: / 200MM |
| 18 |
N 0209022 |
cable tie / 6X246 |
| 19 |
443862199 |
clip |
| 20 |
N 90666101 |
cable tie / 4,5X200 |
| 21 |
--------- |
no longer available |
| - |
049129808A |
damper |
| - |
321611969 |
sealcover under dashboardfloor coveringluggage boot trimtrim for parcel shelf,
rearsound absorber for floorsound absorber for cross panel |
