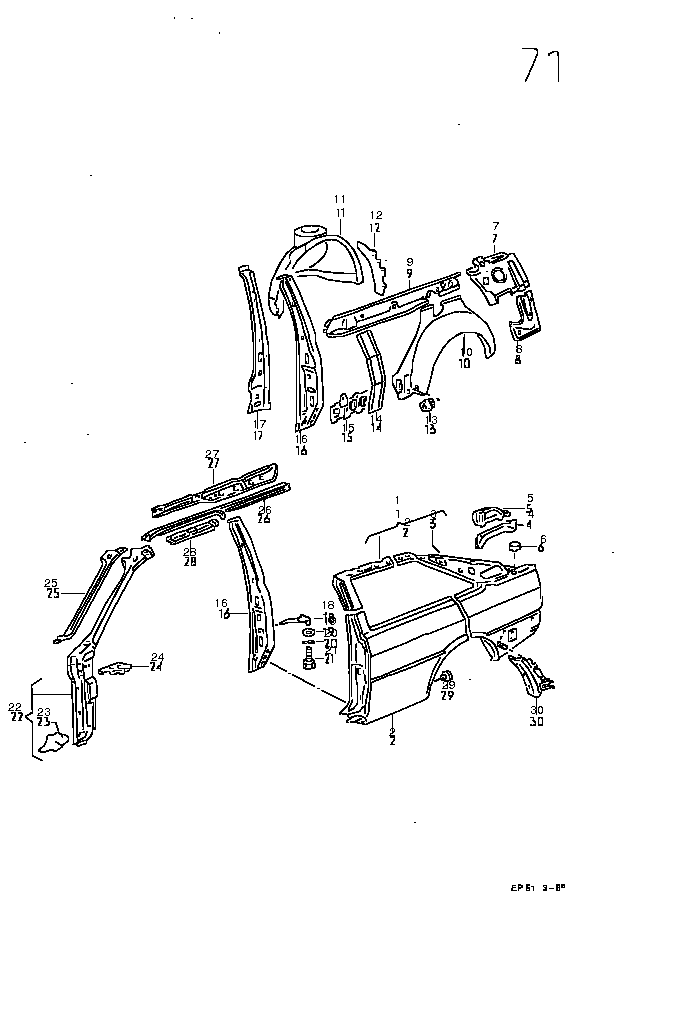

Audi Coupe quattro, 1985 SIDE PANEL

(1) 855809606H side panel / right outer / lhd
(1) 856809606C side panel / right outer / rhd
2 855809847 sub-part - side panel / left front / outer
(2) --------- no longer available / right front / outer
3 855809849A sub-part - side panel / left rear / outer
(3) --------- no longer available / right rear / outer
4 855809319 guiding plate / left
(4) 855809320 guiding plate / right
5 855809711A air guide / left
(5) 855809712A air guide / right
6 443821169 covering
443821169 01C satin black
7 --------- no longer available
8 813809019 rip plate / left outer
(8) 813809442 rip plate / right outer
9 811809563 rip plate for pillar b / c / left
(9) 811809564 rip plate for pillar b / c / right
10 --------- no longer available
11 857809851 wheel housingliner / left rear / inner
(11) 857809852 wheel housingliner / right rear / inner
12 --------- no longer available
13 803803583B plug / 40
14 855809347 reinforcement for side panel / outer
15 811809859 rip plate for pillar b - wheel housing / left
(15) 811809860 rip plate for pillar b - wheel housing / right
16 855809221 b-pillar, outer / left lhd
(16) 855809222 b-pillar, outer / right lhd
(16) 856809221 b-pillar, outer / left rhd
(16) 856809222 b-pillar, outer / right rhd
17 855809223 b-pillar, inner / left
(17) 855809224 b-pillar, inner / right
18 855809090 lever
19 N 0115213 washer / A3,7X8X0,5
20 N 0122352 spring washer / A7X12X0,5
21 N 0102631 hexagonal head bolt / M4X6
- N 0110941 welded nut / 7/16"-20
- N 0114111 panel nut / 7/16"-20UNF-B
22 855809201C a-pillar, outer / left
(22) 855809202C a-pillar, outer / right
23 --------- no longer available
24 --------- no longer available
25 855809207 a-pillar, inner / left upper
(25) 855809208 a-pillar, inner / right upper
26 855817963 roof frame / left outer
(26) 855817964 roof frame / right outer
27 855817967 roof frame / left inner
(27) 855817968 roof frame / right inner
28 855817971A roof frame / left upper
(28) 855817972A roof frame / right upper
29 431805121A t-boltstone guardsee illustration: / 70
- N 90175701 weld pin 'order unit 100' / 5X12
- 811803593 plug
- 171971913 grommet / 12,5
- N 0209022 cable tie / 6X246 flap for fuel filler
