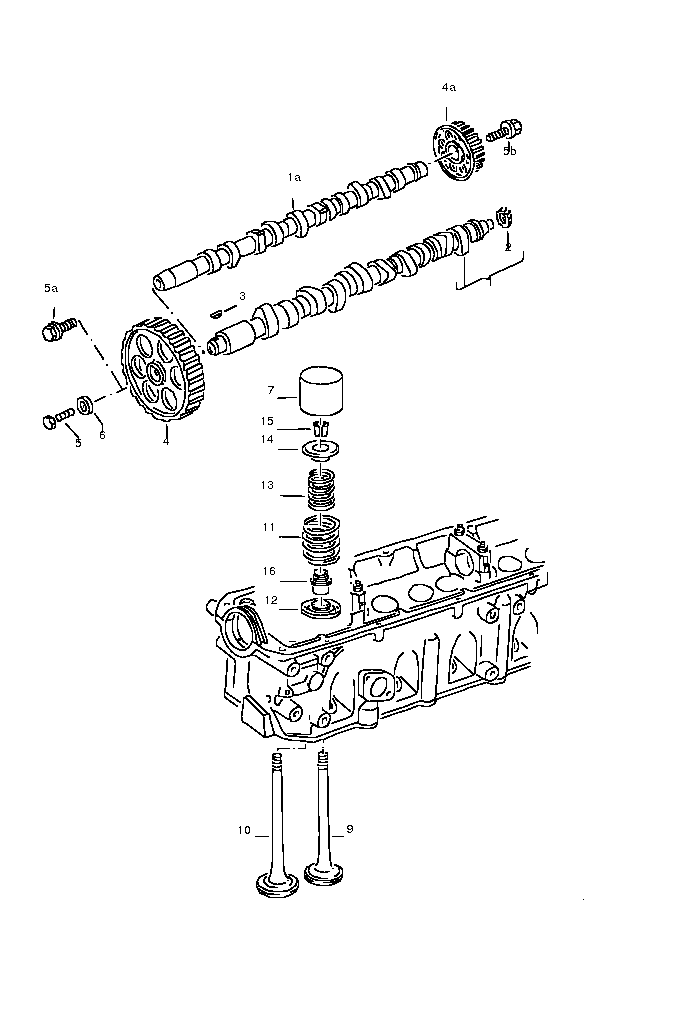

| 1 |
034109021K |
camshaft / KV,HY,NG |
| (1) |
034109021P |
camshaft / JT |
| 2 |
035109109 |
drive gear forignition
distributor |
| 3 |
N 0127082 |
woodruff key / 4X5 |
| 4 |
049109111C |
toothed belt pulley |
| 5 |
N 0101371 |
hexagonal head bolt / M12X1,5X35 |
| 6 |
056109143 |
washer / 12,5X28X6 |
| 7 |
034109309AD |
cam follower |
| 9 |
035109601K |
intake valve / 91,9 / KV,HY,JT |
| (9) |
048109601A |
intake valve / 91,9 / NG |
| 10 |
053109611 |
exhaust valve / 91,2 |
| 11 |
078109623A |
spring - valve / outer |
| 12 |
056109629A |
spring disc / lower |
| 13 |
078109633A |
spring - valve / inner |
| 14 |
049109641A |
spring disc / upper |
| 15 |
113109651A |
cotter, split |
| 16 |
026109675 |
seal - valve stem / 8MM toothed belt / KV,HY,JT,NG toothed belt cover |
|
